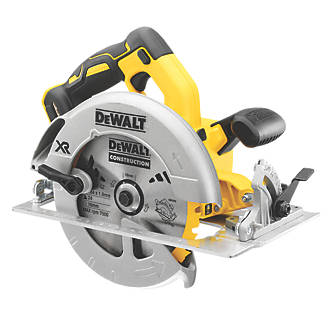

DeWalt DCS570N 18V XR Brushless 184mm Circular Saw Bare Unit

DeWalt DCS570N 18V XR Brushless 184mm Circular Saw Bare Unit

DESCRIPTION


Dewalt DCS570N 18V XR Brushless 184mm Circular Saw Bare Unit DCS570N-XJ


The Dewalt DCS570N brings cordless to the corded DWE575. Made for professional use with the same power and the same benefits but without the cable. The DCS570 also adds an over-mould handle for improved grip and ergonomics. Featuring XR technology, the DCS570 can be used in trades where you'd use a corded circular saw for example Roofers, Concrete Form Workers, Furniture Makers, Kitchen Fitters, Shop Fitters, Plumbers, Joiners, Carpenters, Landscapers and Boat Builders. As the DCS570 can hold its own alongside corded circular saws it is also perfect for a wide variety of demanding tasks such as Timber Frame Construction, Internal Stud Work, Shuttering Joinery, Sizing Panels and Laying Decking.


Features and Benefits


  • 18V Brushless motor for improved power and run-time
  • Powered by 18V XR 5.0Ah Li-ion battery for extended run time (100 cuts 200 x 50mm softwood)
  • Over-mould touchpoints on the handle for improved grip and ergonomics
  • Cutaway guard lifts when in use for increased visibility. When not in use it covers the blade for safer storage
  • LED light and dust blower for increased visibility
  • Durable aluminium cut away guard increases cut-line visibility. Safer when not in use
  • DWE575 aluminium base is lightweight and durable
  • Airlock compatible dust extraction system for a cleaner and safer job site environment

Technical Specification:


Power Input - Watts
Power Output - Watt
No Load Speed - 5500 rpm
Blade Diameter - 184 mm
Blade Bore - 16 mm
Bevel Capacity - 57 °
Max. Depth of Cut at 90º - 64 mm
Max. Depth of Cut at 90º[with guide rails] - NA mm
Max. Depth of Cut at 45º - NA mm
Max. Depth of Cut at 45º[with guide rails] - NA mm
Weight - 3.6 kg
Length - 355 mm
Height - 245 mm
Hand/Arm Vibration - 2.5 m/s2
Uncertainty K 1 (Vibration) - 1.5 m/s²
Sound Pressure - 91 dB(A)
Sound Pressure Uncertainty - 3 dB(A)
Sound Power - 102 dB(A)
Sound Power Uncertainty - 3 dB(A)
Battery chemistry - Li-Ion
Voltage - 18v V
Battery Capacity - Ah

Supplied With:


1 x DCS570N 18V XR Brushless 184mm Circular Saw
1 x Blade Change Wrench (located in the back of the tool)

Naked Machine / Body Only. Not Supplied With Batteries, Case or a Charger






























SPECIFICATIONS


BATTERY INCLUDED : NO
BATTERY TECHNOLOGY : LITHIUM-ION (LI-ION)
BLADE DIAMETER : 184 MM
BRUSHLESS MOTOR : YES
POWER : CORDLESS ELECTRIC
POWER SOURCE : BATTERY
PRODUCT GROUP : TOOL
TOOL TYPE : CIRCULAR SAW
TYPE : CIRCULAR SAW
VOLTAGE : 18 V
